Partner for contract gear manufacturing
Job shops must react quickly and flexibly to market requirements. For these users, Liebherr-Verzahntechnik GmbH offers a range of universal machines that cover the entire spectrum of gear cutting. Liebherr also takes pride in being a partner that listens to customers and offers solutions for the requirements of this market sector.
Kempten (Germany), 07/2022 – Job shops and manufacturers of small series and single parts must be able to react flexibly to market conditions and produce a wide variety of gear components. The workpieces range from very small or complex components, such as those used in robotics or aerospace, to standard gears used in industrial gearboxes, for example. Production may go all the way from small batch sizes to series production.
Special requirements in contract gear manufacturing
In order to meet market requirements in the medium and long term and to remain internationally competitive, the machines must be as universal, durable and upgradeable as possible. Particularly for medium-sized, often owner-managed companies that produce a wide variety of gears for different industries, this means that purchasing is not just a question of price, but also about investing in the future. In addition to the versatility of the machines, this also requires a partner that can be trusted to guarantee quality, and provide advice and support in the long term.
Partner for small and medium-sized companies
For a long time, Liebherr-Verzahntechnik GmbH was traditionally regarded as a partner of automobile and commercial vehicle manufacturers and their suppliers with large-scale production. However, the company has since long outgrown this image. “What many people don’t know is that Liebherr machines cover the entire gearing portfolio for job shops,” explains Dr. Oliver Winkel, head of technology application at Liebherr-Verzahntechnik GmbH. “Even our standard machines offer the full range of external and internal, straight and helical gears for workpieces such as ring gears, shafts and worm gears, with and without automation.”
Machines, consulting, support
Machines such as the LC 280 α universal gear cutting machine, the LS 400 EM gear shaping machine with electronic helical guide or the powerful LGG 700 M generating and profile grinding machine are particularly well suited for job shops. The WGT gear measuring machine ensures absolute precision and versatility in component measurement far beyond conventional gear checking (see machine overview diagram). In addition, Liebherr offers consultation, support and service. “We contribute our expertise and experience and advise our customers when deciding on a specific machine or technology, because we view ourselves as partners,” Winkel emphasizes.
LC 280 a - gear hobbing machine
Flexible,low investment, fast delivery, high productivity
Maximum flexibility for a wide range of workpieces
LHGearTec user interface
Max. workpiece diameter: 380 mm
Max. nominal module for steel: 5 mm
Max. workpiece length (M): 500 mm
Automation with ring loader concept for workpieces up to 15 kg
LGG 700 M – generating/profile grinding machine
Individually configurable, most powerful in its class on the market
Large batch sizes (also at 700 M)
Max. workpiece diameter: 500/700 mm (generating/profile grinding)
Max. module: 14 mm
Max. workpiece length: 830 mm
Profile grinding of internal gears optional
LS 400 EM – gear shaping machine
Flexible, wide range of workpieces, table with direct drive, minimal setup, electronic helical guide, external and internal gears
Single parts / prototypes, small to medium batch sizes
Max. workpiece diameter: 400 mm
Max. module: 5 mm
Max. stroke length: 70 mm

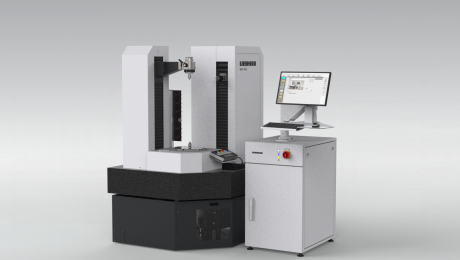

WGT – gear measuring machine
Precise, flexible, user-friendly interface (LHInspect), ergonomic design, manufacturer-neutral GDE interface for data transfer to production machines
Available in 5 sizes (280 / 400 / 600 / 850 / 1200) max. workpiece diameter
Measuring accuracy: gear measurement as per VDI/VDE 2612/2613, Group 1
About the Liebherr Group
The Liebherr Group is a family-run technology company with a highly diversified product portfolio. The company is one of the largest construction equipment manufacturers in the world. It also provides high-quality and user-oriented products and services in a wide range of other areas. The Liebherr Group includes over 140 companies across all continents. In 2021, it employed more than 49,000 staff and achieved combined revenues of over 11.6 billion euros. Liebherr was founded in Kirchdorf an der Iller in Southern Germany in 1949. Since then, the employees have been pursuing the goal of achieving continuous technological innovation, and bringing industry-leading solutions to its customers.
