[Jonne]

My friends Romi lathe's ( EZ PATH I -97 ) blew it's harddrive and there was also setup file.

I got from BPT-parts install disks and DOM ( disk-on-module ) and there was no problems to install EZ-path. But now machine is moaning "Guard not place" if try start spindle. Both safety relays and their both channels are ON stage, but still not working... WTF?

I think there was some parameters what that install couldn't set. Our manual have some missing pages and guess are those missing pages exactly for parameters...

So if anyone have Romi lathe, please, please make copy that setup file, so we can compare what is problem... Here's machine last parameters ( first 150 are quite boring and we don't think there is any problem ), I hope somebody can solve this problem...

By to way, this machine have European safety accessories, I think there is probally some differences with USA version.


Regards,
Johannes



****

.
.
.
.
; The following "parameters" are actually the contents of LOGICAL, the
; machine state (switches and commands) as mapped onto a "logical" (machine-
; independant) bitmap. Access to them is provided to facilitate writing
; diagnostic aids, such as a switch-state monitor.
;
00000000000 ; 150 ; Machine Faults Byte
00000000000 ; 151 ; Axis Limits Byte
00000000000 ; 152 ; Auxiliary Limits Byte
00000000000 ; 153 ; Drive Faults Byte
00000000001 ; 154 ; Machine Status Byte
00000000001 ; 155 ; Home Switch Status Byte
00000000000 ; 156 ; Machine Options Status Byte
00000000000 ; 157 ; User Status Byte
00016777216 ; 158 ; Switch Status Byte #1
00000000000 ; 159 ; Switch Status Byte #2
00000000069 ; 160 ; Machine Command Byte #2
00000000000 ; 161 ; Machine Options Command Byte
00000000000 ; 162 ; User Command Bits Register
-0000016384 ; 163 ; Spindle Command Byte
00000000032 ; 164 ; Spindle Status Byte
00000000000 ; 165 ; Commanded spindle speed (RPM)
00000000000 ; 166 ; Tool Changer #1 command register
-0000000128 ; 167 ; Tool Changer Status
00000000000 ; 168 ; Tool Changer Control Register
00000000000 ; 169 ; Desired Current Tool position
00000000000 ; 170 ; Current Tool Carrousel position
00000000000 ; 171 ; Inputs to TLAUF
00000000000 ; 172 ; TL1AUF output command register (for test use)
00000000000 ; 173 ; Desired NOVRAM address
00000000000 ; 174 ; Data to be written into NOVRAM
00000000015 ; 175 ; NOVRAM address
00000000000 ; 176 ; Register used by AUFDRVR to access NOVRAM
00000000000 ; 177 ; NOVRAM byte 00
00000000000 ; 178 ; NOVRAM byte 01
00000000000 ; 179 ; NOVRAM byte 02
00000000000 ; 180 ; NOVRAM byte 03
00000000000 ; 181 ; NOVRAM byte 04
00000000000 ; 182 ; NOVRAM byte 05
00000000000 ; 183 ; NOVRAM byte 06
00000000000 ; 184 ; NOVRAM byte 07
00000000000 ; 185 ; NOVRAM byte 08
00000000000 ; 186 ; NOVRAM byte 09
00000000000 ; 187 ; NOVRAM byte 10
00000000000 ; 188 ; NOVRAM byte 11
00000000000 ; 189 ; NOVRAM byte 12
00000000000 ; 190 ; NOVRAM byte 13
00000000000 ; 191 ; NOVRAM byte 14
00000000000 ; 192 ; NOVRAM byte 15
00000000000 ; 193 ; Tool Changer #2 command register
00000000000 ; 194 ; Tool Changer #2 Status
00000000000 ; 195 ; Tool Changer #2 Control Register
00000000000 ; 196 ; Desired Current Tool position
00000000000 ; 197 ; Current Tool Carrousel position
00000000000 ; 198 ; Inputs to TLAUF
00000000000 ; 199 ; TL2AUF output command register (for test use)
00000000000 ; 200 ; Desired NOVRAM address
00000000000 ; 201 ; Data to be written into NOVRAM
00000000000 ; 202 ; NOVRAM address
00000000000 ; 203 ; Register used by AUFDRVR to access NOVRAM
00000000000 ; 204 ; NOVRAM byte 00
00000000000 ; 205 ; NOVRAM byte 01
00000000000 ; 206 ; NOVRAM byte 02
00000000000 ; 207 ; NOVRAM byte 03
-0000134145 ; 208 ; NOVRAM byte 04
00000000000 ; 209 ; NOVRAM byte 05
00000000000 ; 210 ; NOVRAM byte 06
00000000000 ; 211 ; NOVRAM byte 07
00000000000 ; 212 ; NOVRAM byte 08
00000000000 ; 213 ; NOVRAM byte 09
00000000000 ; 214 ; NOVRAM byte 10
00000000000 ; 215 ; NOVRAM byte 11
00000000000 ; 216 ; NOVRAM byte 12
00000000000 ; 217 ; NOVRAM byte 13
00000000000 ; 218 ; NOVRAM byte 14
00000000000 ; 219 ; NOVRAM byte 15
00000001600 ; 220 ; Feedrate Override (%)
00000000000 ; 221 ; Spindle speed pot.
-0000000035 ; 222 ; X axis Joystick
-0000000035 ; 223 ; Y axis Joystick
-0000000035 ; 224 ; Z axis Joystick
00000000000 ; 225 ; W axis Joystick
00000000000 ; 226 ; S axis Joystick
; end of param file

[machintek]

What version of software are you using?
Sounds like a new version meant for a CIB (control in a box) machine.
Older software should have asked you if you had a EZPATH 1 or 2 and loaded the correct parameter file.
Newer software requires you to run a parameter set up disk that will ask questions about the type of spindle, chuck, hydraulics, bar feede, tail stock, etc.
If you know DOS you can get to PFM.exe and go through each parameter and look for the option parameters and GPAUF set up which will have that switch that does not exist.
But you probably have a AUF, not a GPAUF. They may have sent you the wrong software.

George

[Jonne]

This install disk set ask everything, including my socks's color...

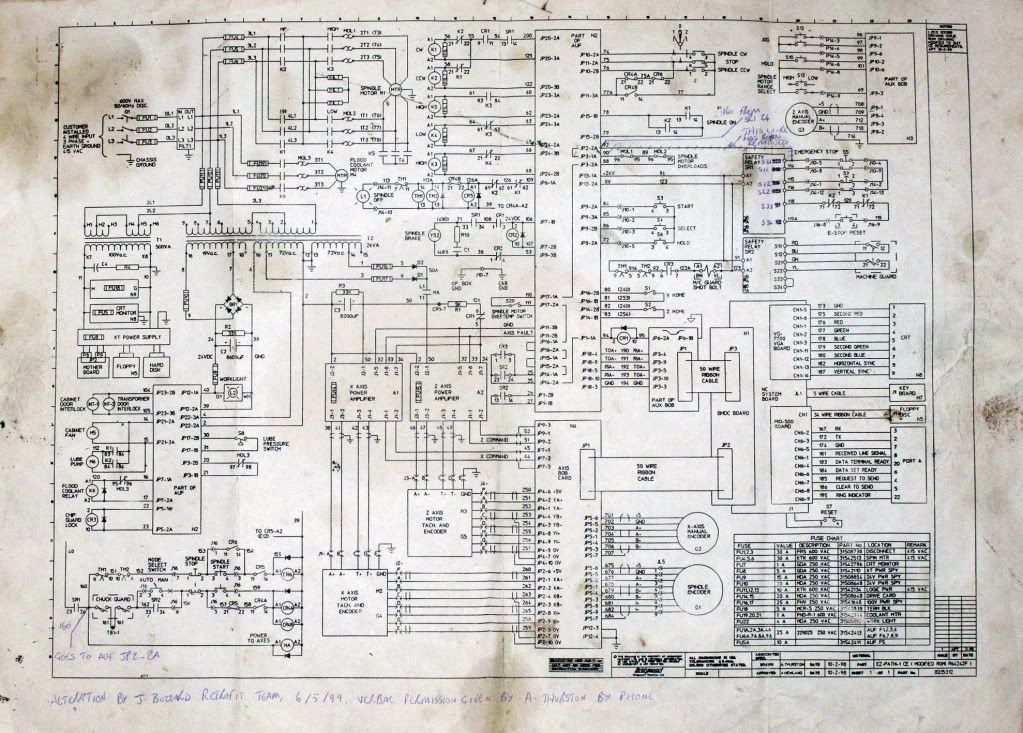

There is made -99 some changes in schematics, double channel EMstop circuit is changed to single channel...



Machine look like this:

[Jonne]

Some new info:

Old system was: V2.21/6.81 and new one is V2.50.21

Maybe this is The problem?
