    Emco 120p Rebuild

    Hello all, I have recently acquired an Emco 120p lathe. Everthing looks good on it. But, it's a 380 volt machine and there is no transformer for it. It also has the old electronics and i think it's time to bring this machine to the modern age.

    I've already stripped some of the lathe down, removed the spindle motor and the 5 phase steppers. I can tell you now that these things were really built.

    Anyway, here are some pics of the strip down...





    I'm replacing the original spindle drive with a Magnetec constant torque 4 hp inverter duty motor, with a 4kv VFD. The steppers are 2 Keling Nema 34 640 oz-in. For drivers, I'll be using 2 Keling digital drivers for the steppers.

    Hopefully, i'll be able to utilize the spindle encoder. I'm also hoping to work something out for the tool turret...



    I've already built the computer for it. It's an itel mini-itx with dual atom processors, 2 gig of ram and 160 gig sata laptop drive...nice and small

    The system will be dual boot, with win xp and linux. I want to see how Mach3 and Emc2 work on the lathe.

    that's about it for now....more to come

    pete

  2. #2
    Registered
    Join Date
    Feb 2007
    Posts
    24
    Hello Pete,

    i have a Compct 6P wich is similar to the 120P. A very nice and sturdy machine. My machine was in a very good condition so i changed nothing. Wich chuck will you use? The pneumatic one opens only 3mm. I thought about changing the chuck to a bigger manual one. But then i realized that if i do so i could not use boring tools. Not so good for hobby use. I think i´will have to buy the manual chuck from Emco but it costs about 650 €.

    I´m very interresed in your conversion.

    greetings Rene

  3. #3
    Registered
    Join Date
    Feb 2007
    Posts
    24
    Hello Pete,

    anything new?

    Greetings Rene

  4. #4
    Registered
    Join Date
    Jul 2006
    Posts
    367
    Quote Originally Posted by rot View Post
    Hello Pete,

    anything new?

    Greetings Rene
    Lots, I have installed a 4 hp induction motor, with a VFD. There are now 2 new stepper motors controlled by Kelling's solid state drivers

    Everything runs great under Mach3, speed control, stepper movement, etc.

    I'll try to post some pics soon...

    Lastly, I'm currently working on the tool changer. I'm currently researching my options

    pete

  5. #5
    Registered
    Join Date
    Jul 2006
    Posts
    367
    Here's my progress ..so far.

    Here's my X axis...I had to mill the the ID of the original bracket and pulley to fit the new stepper.



    Here's the Z axis...



    This is the motor that will provide power...I'm using a Huanyang 5 hp vfd to convert to 3 phase.



    I used the original pulley, just opened it up a bit to fit the shaft. Both pulley's are original. I'm getting 2875 rpm for the high.

    Here is how I'm reading and adjusting my speeds....I'm using the original disc and housing. The gap is about .250" in width. The optical sensor is Arturo's C3 index pulse card . The sensor sits on top of the original circuit board and is in a position so that it only reads the larger gap.



    I have ran everything thru Mach 3 and all seems good so far. I'm able to change speeds and I have good movement with the steppers. Next comes the homing and limit switches. I've decided to use proximity switches.

    I still have a lot to learn, as this is my ever involvement in CNC.

    pete

  6. #6
    Registered
    Join Date
    Jul 2006
    Posts
    367
    It’s been a while since my last post. But, things have been moving forward. At work, they scrapped some sections of aluminum slat panels. I then decided to use them for my new control panel.

    Thanks to budget constraints and my lack of welding skills, I made up the control panel out of a pine and maple combination (it’s what I had laying around). So, if the wood bothers anyone, oh well…lol.

    Anyway, Here is a pic of what things will look like, barring any other changes…….



    The lathe has been cleaned up and resealed. Here is the cutting room ….



    In this shot (sorry about the quality) you can see the new motor, the pneumatics..which power the tailstock and chuck and automatic oiler.



    My retrofitted speed sensor and chuck closer…



    I am only using two proximity switches for my homing and limits. I was going to use 6, but, after reading a post on here, I decided to go with only two. It does make for an easier wiring job

    Here is the Z setup…



    And the X (sorry about the blurry pic)..



    Now for the control board… it’s still in the building stages, but, you’ll get an idea of what is going on.

    Here is the distribution area. My main 220 volt supply (with breaker and contactor), a 12 volt and a 24 volt supply…and terminal boards…

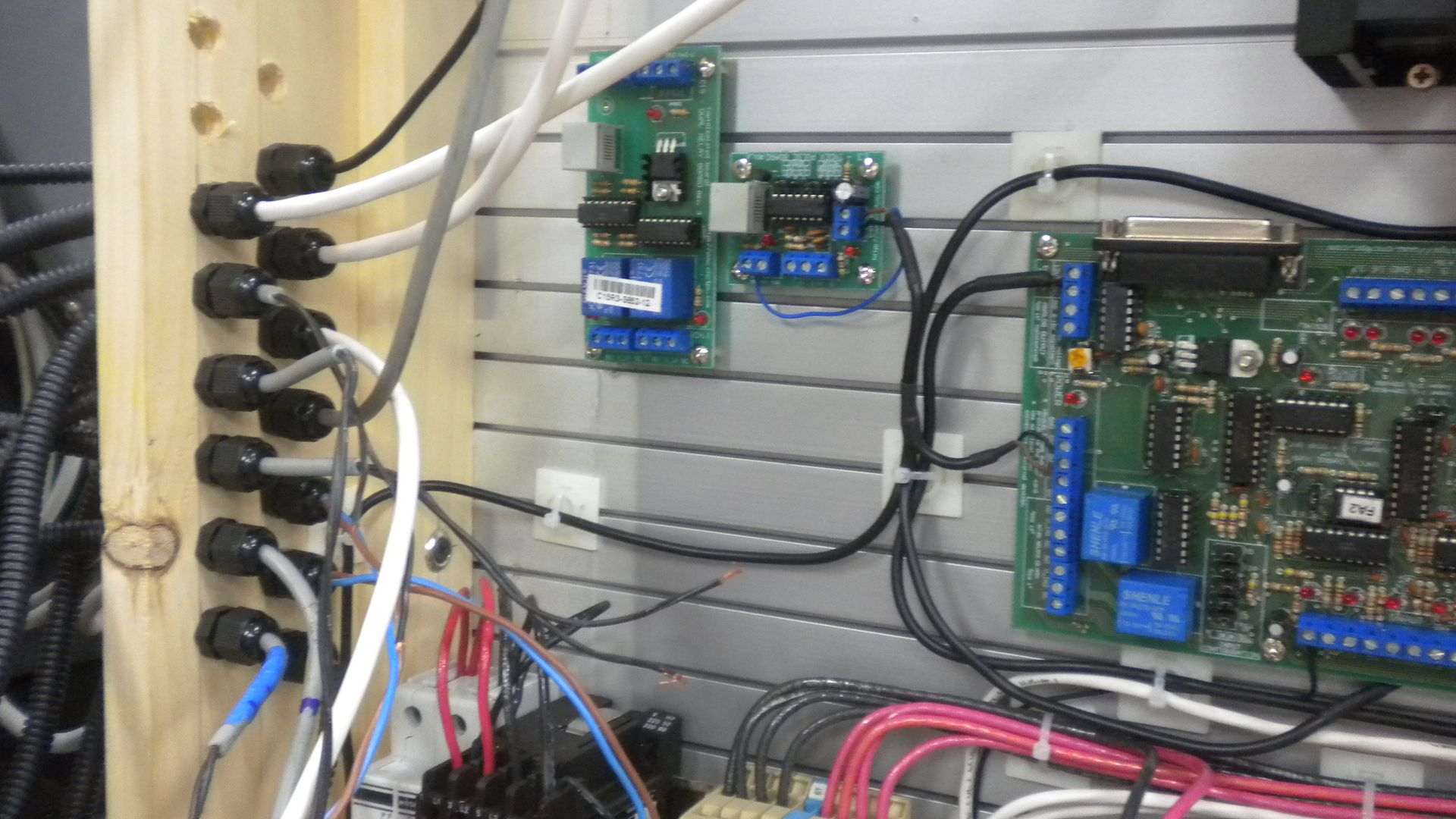

    Here is a shot of the C3 index pulse card, C15 dual relay board (which will be used for the automatic oiler) and some of the 18 cables that are coming from the lathe…



    The intel itx mother board, C11 board, Keling digital drives and power supply.



    Here’s a group shot of the entire panel.



    I also made up a set of doors for the rear. I will be installing a couple of fans on these doors. Here’s one of them.



    Almost forgot, my monitor mount….



    And that is where I stand as of now….more to come

    pete

  7. #7
    Registered
    Join Date
    Jul 2006
    Posts
    367
    Some more progress..

    I changed some of the wiring and gave the box a paint job.....





    the control board.....



    almost done..

  8. #8
    Registered
    Join Date
    Dec 2006
    Posts
    839
    Nothing in the world wrong with wood. Looks like a very nice job and I bet that lathe is nice. Much better than trying to take a asia lathe and CNCing it. That control panel is sweat.


    When you get more used to running it shot us a vid of it in action. These lathe do pretty good. I would love to find one setting around needing help.


    Jess

  9. #9
    Registered
    Join Date
    Jul 2006
    Posts
    367
    I think i'm finally done !!!!! I made all the necessary inputs into Machturn, some tweaking and ran my first ever cnc program...cutting air What a feeling!!!!

    Anyway, just to update some things. I'm running a 4 hp inverter duty 3 phase motor thru the famous Huanyang vfd It's a 5kw unit I bought thru EBay. I had some problems with it faulting at start up and deceleration. I changed the parameters and set the accel and decel times up as high as 35 seconds.

    The motor ran ok, but, at times the VFD would fault here and there. I kinda think the VFD doesn't have large enough capacitors. So i kinda started to do some thinking, which is always dangerous. When i stripped the old Emco control, it had 3 really nice choke coils in the motor circuit. I thought to myself, why not install them in my setup. This past weekend, I installed the coils and it worked!!!! No more faulting. I even lowered the accel and decell times to 6 seconds and still no faults. Anyway, each coil is in series with each leg of the motor. I used an old switch box to put the coils in..Here are some pictures..



    a closeup of the coils....



    The motor runs great, with no apparent lost of power. When I set the speed in Mach, the rpm is dead on in the dro and my external tach. I have ran the motor through all types of speeds and even made up a contraption ( out of a couple 2 x 4's) to put some resistance on the spindle and still no faulting or loss of speed. I'm excited


    Lastly, I attached my rear doors...just have to install some fans before paint.





    I'm going to try to get a video of the machine running in the next couple days.

    pete

  10. #10
    Registered
    Join Date
    Jul 2006
    Posts
    367
    Hello everyone, I finally have my EMCO running I spent the last 5 vacation days learning this G code stuff..a 16 hour day was the average...lol. Setting the tool offsets for the drills in Machturn was the hardest. I really had a hard time setting the offsets for the drill bits. Although the drills had the same offsets, every time I called the tool number for a different drill, the offset would change. So I just did an M5, using the tool setting that worked and switch bits in the delay. Mach turn doesn't have a canned cycle for drilling and parting, so I kind of made up my own for each drill bit. Lastly, the turret is being operated manually. I'm going to try doing something in the future to get it working thru Mach.

    Anyway, without futher delay, My very first CNC program at work...

    [ame=http://www.youtube.com/watch?v=NfnCUv_4qqs]DSCN3859 - YouTube[/ame]


    pete

  11. #11
    Registered
    Join Date
    Dec 2006
    Posts
    839
    Thats pretty sweet, when you get the torret working its going ot be a very handy machine. CNC lathe is nice to have.


    Jess
    GOD Bless, and prayers for all.

  12. #12
    Registered
    Join Date
    Aug 2012
    Posts
    0

    Thumbs up Spindle motor

    Hello- this is my first post. I got my 120P 2 days ago without the control box. If I understand correctly, most people change out the motor. Is DC or AC better?? What would be the min HP? I would rather use single phase if possible. What motor would be best?? What control board is best to control the frequency /speed of the motor through mach3??

    I really don't know what I am doing so any advice would be appreciated. I have 5 phase servo drivers coming, a flow control for the lubricant pump, a USB breakout board, and a control board for the power turrett which will also control the lubricant pump and the pneumatic collet closer.

    Thanks-- I look forward to joining this board.

    Mark

  13. #13
    Registered
    Join Date
    Dec 2012
    Posts
    2
    Hi Pete
    I’m new here and relatively new to CNC I have been a machinist for 45 years only on manual machining. I recently purchased an Emco Maire 220 lathe. This machine was purchased from a friend in North Carolina. I went there to see it run and learn some things about G code. The lathe ran fine. He was running it on a rotary phase converter. I as well have to do the same. I transported the machine to my shop in Trenton NJ and set it up. I hooked it up to my 10hp Rotary converter. Lowe and behold it didn’t run the computer would work but the spindle would not turn and I got as 20 alarm “main drive not ready”. Someone said to get a bigger converter so I got a 25 hp converter same thing. Someone said the power is uneven so I bought a digital phase converter $3000.00 pulse dollars same thing. I haired a technician from Emco after two days he gave up and now the machine runs worse than before he came. I’m just about ready to junk this thing when I came across your post. I think I would like to convert it to Mach 3 but need some guidance can you help please.

  14. #14
    Registered
    Join Date
    Jul 2006
    Posts
    367
    trainman, a pm has been sent
    pete

  15. #15
    Quote Originally Posted by slowtwitch View Post
    trainman, a pm has been sent
    Pete, if you sent him the magic phrase, please let me know. I'm in the exact same boat, and am ready to toss this thing into the alley. I don't need a project. I have a shop to run. If this one doesn't straighten up and fly right, there will be another machine in its place in short order having messed about with this one for almost 8 months now.

  16. #16
    Gold Member
    Join Date
    Feb 2010
    Posts
    3447
    Very awesome!

  17. #17
    Registered
    Join Date
    Jul 2006
    Posts
    367
    I don't have any "magic phrase's". Actually, i don't know anything about Emco's electronics. Trainman's Emco is going to be converted in about the same manner as mine was
    pete

  18. #18
    Registered
    Join Date
    Aug 2010
    Posts
    190
    Awesome! How did you get the spindle running? 3phase still? Spindle controller? 0-10v?

  19. #19
    Registered
    Join Date
    Jul 2006
    Posts
    367
    I installed a 3 hp inverter duty motor and it's controlled with a Hitachi WJ200 Vector drive....thru Mach
    pete

  20. #20
    Registered
    Join Date
    Jul 2006
    Posts
    367
    Hi folks, I just wanted to post a video of my turret that is finally under Mach3 control



    This will be the last of the Emco 120p updates...

    I have acquired an Emco 220 recently and it will be getting the same treatment as the 120p ....

    I'll start a new thread on its rebuild
    pete
