    Hinge with Retained Lock Pin

    Hello,

    This is my first attempt working with CAD to get a part I cant find elsewhere.

    I'm still learning how the program works (Corel CAD) so there are likely numerous errors and the precision isn't really there. I have a .DWG file to go along with this. Looking for possible Nylon prototype then minimum of 5 sets (Left and Right) (6061), and possibly several more sets of 5 by summer.

    I attached screen captures because I couldn't get the PDF shrunk down below forum limits.

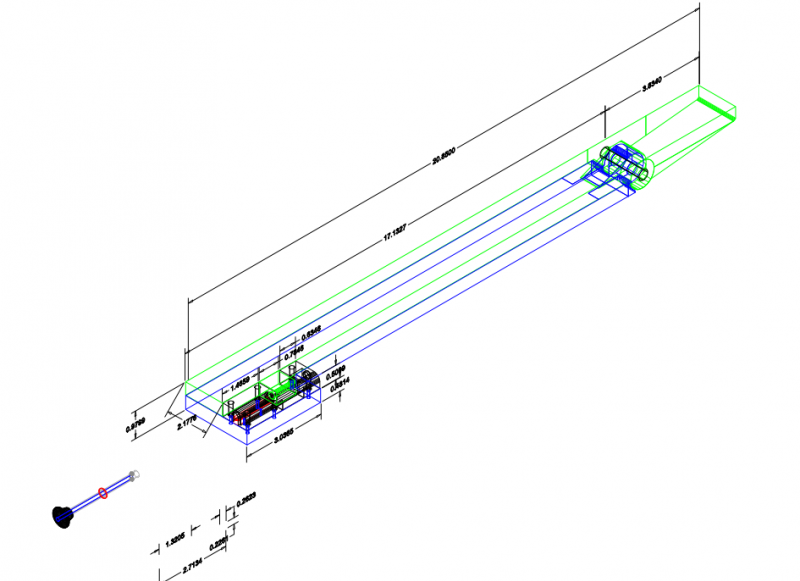

    Attached Thumbnails Attached Thumbnails Screen Shot 2013-03-23 at 9.19.58 PM.png   Screen Shot 2013-03-23 at 7.56.02 PM.png
    Reply With Quote Reply With Quote
  2. 03-23-2013, 11:13 PM #2
    DPhillips
    DPhillips is offline Registered
    Join Date
    Dec 2012
    Posts
    19
    I can make these for you. Can you email me the electronic files and an expected turnaround time? My email address in [email protected] Also do you have a preference on grade of nylon?
    Reply With Quote Reply With Quote
  3. 03-24-2013, 02:14 PM #3
    BLKFLD
    BLKFLD is offline Registered
    Join Date
    Mar 2013
    Posts
    36
    Here are a few JPEGs, hopefully they look better.

    Emails with drawings sent.

    Thanks,
    Oscar

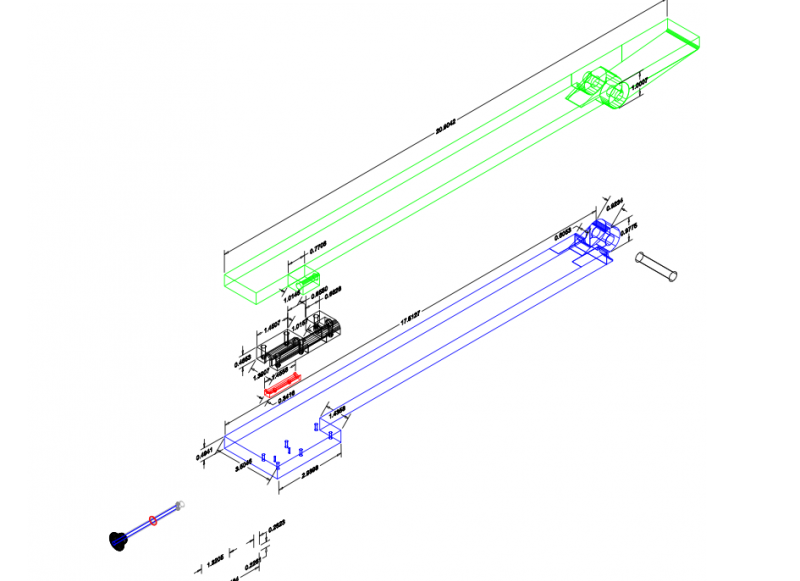

    Attached Thumbnails Attached Thumbnails Dimensions 2.jpg   Rails 3.jpg
    Reply With Quote Reply With Quote
  4. 03-26-2013, 11:45 AM #4
    BLKFLD
    BLKFLD is offline Registered
    Join Date
    Mar 2013
    Posts
    36




    Reply With Quote Reply With Quote
  5. 03-28-2013, 09:56 AM #5
    BLKFLD
    BLKFLD is offline Registered
    Join Date
    Mar 2013
    Posts
    36
    I am not accepting any additional quotes on this part. thanks everyone.
